Left-hand column: Downlink

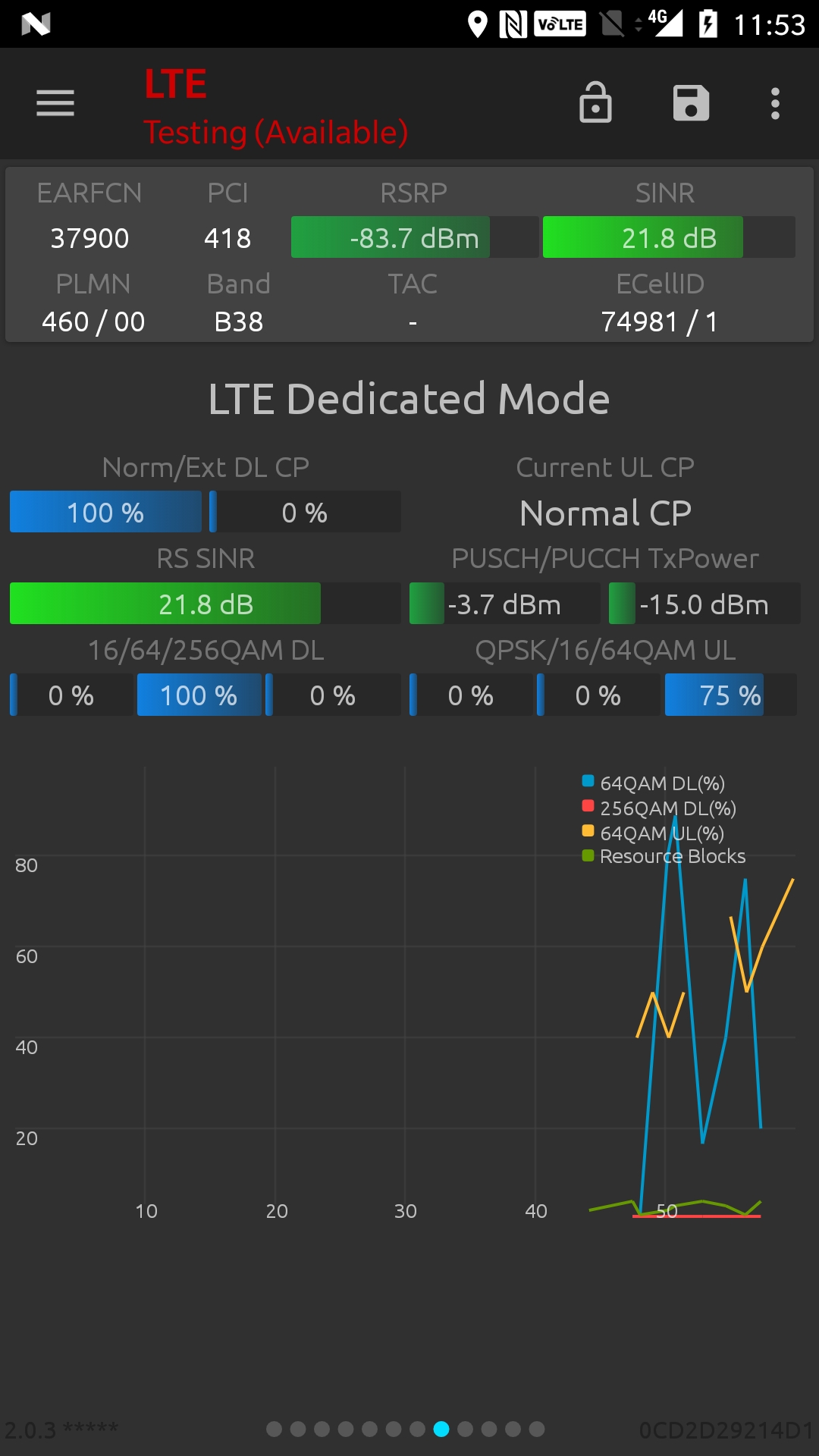

The LTE Dedicated Mode will display the data as follow:

Norm/Ext DL CP：Percentage distribution of downlink cyclic prefix usage: Normal (left) vs. Extended (right). Updated once every second.

RS SINR: Received Signal SINR in dB

QPSK/16/64QAM DL: Percentage distribution of downlink modulation scheme usage: QPSK (left), 16-QAM (center), 64-QAM (right). Updated once every second.


Right-hand column: Uplink

Current UL CP：Type of cyclic prefix currently used on uplink: Normal or Extended.

PUSCH/PUCCH Tx Power: Transmit powers on PUSCH and PUCCH respectively: maximum value during the past second.

QPSK/16/64QAM UL: Percentage distribution of uplink modulation scheme usage: QPSK (left), 16-QAM (center), 64-QAM (right). Updated once every second.

Legend:

The line chart shows the latest 60 seconds. Each label “<n>” on the x-axis means “n seconds ago”. The y-axis has two sets of scale marks: “number of” (left) and “percent” (right).

Resource Blocks: PDSCH resource block allocation, also presented numerically in the “LTE CA Matrix” view.

DL 64 QAM, UL 64 QAM: 64-QAM usage rate, 64-QAM usage rate (in %) on downlink and uplink, respectively.

CP Normal: “Normal” cyclic prefix usage rate (in %) on downlink.
