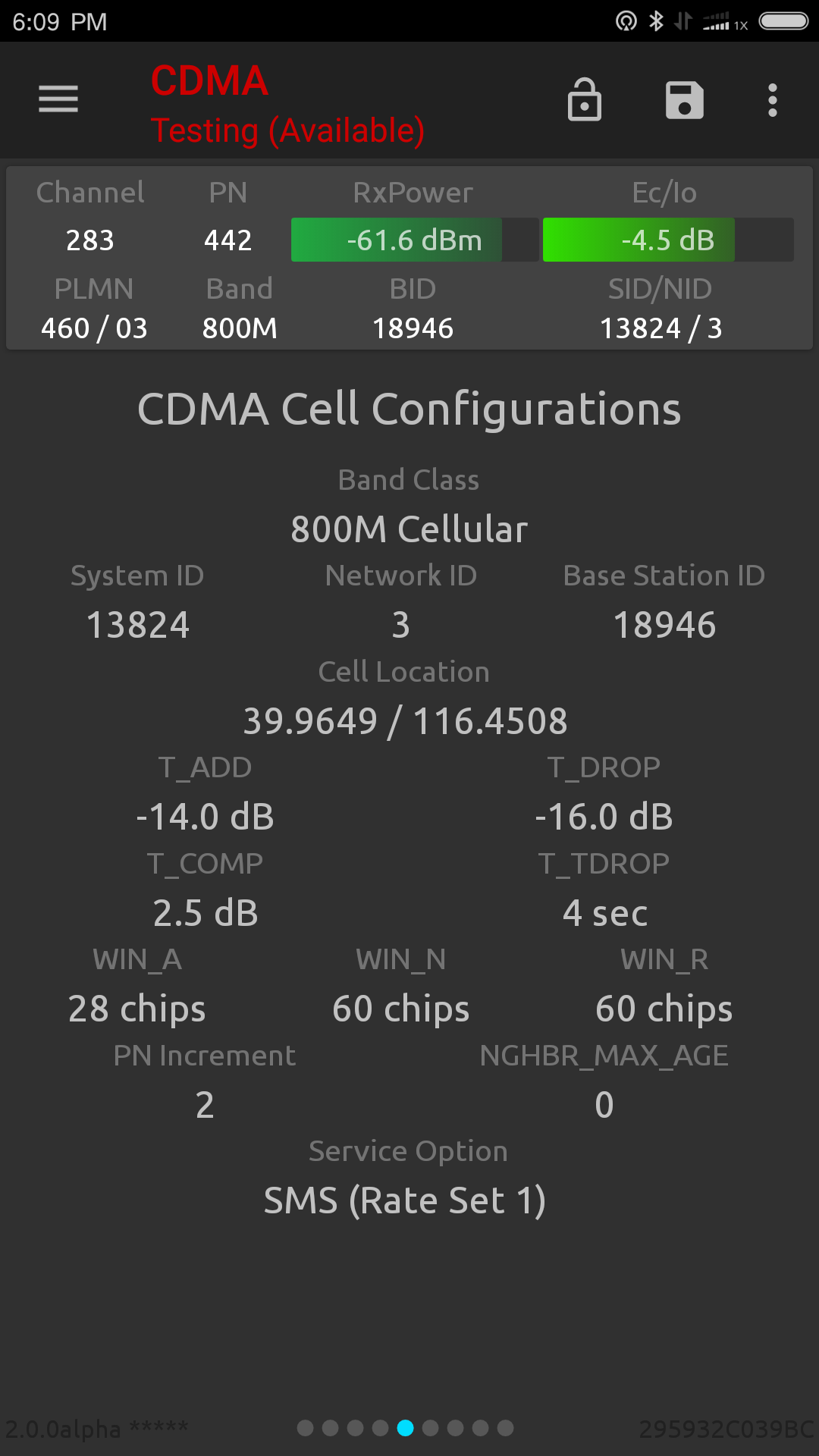

Band Class: as described in CDMA KPIs

System ID: A unique identification code for cellular/PCS systems. Please see IS-95 section 7.7.1.3 for more information.

Network ID: Indicates the network identification code that uniquely identifies a network in a cellular/PCS system. Please see IS-95 section 7.7.1.3 for more information.

Base Station ID: Base Station ID for single cell;

Cell Location: see BS longitude and latitude;

T_ADDIndicates the value for the T_ADD handoff setting in dB.

T_DROP: Indicates the value for the T_DROP handoff setting in dB.

T_COMP: Indicates the value for the T_COMP handoff setting in dB.

T_TDROP: Indicates the value for the T_TDROP handoff setting in seconds.

WIN_A: indicates the size of the active set search window in chips.

WIN_N: Indicates the size of the neighbor set search window in chips.

WIN_R: Indicates the size of the remaining set search window in chips.

PN Increment: CDMA pilot increment(0-20)

NGHBR_MAX_AGE: CDMA Neighbour setting in seconds;

Service Option: A service capability of the system. Service options may be applications such as voice, data, or facsimile, etc.

Basic Variable Rate Voice Service (8 kbps)

Mobile Station Loopback (8 kbps)

Enhanced Variable Rate Voice Service (8 kbps)

Asynchronous Data Service (9.6 kbps)

Group 3 Facsimile (9.6 kbps)

Short Message Services (Rate Set 1)

Packet Data Service: Internet or ISO Protocol Stack

Packet Data Service: CDPD Protocol Stack

Mobile Station Loopback (13 kbps)

STU-III Transparent Service

STU-III Non-Transparent Service

Asynchronous Data Service (14.4 or 9.6 kbps)

Group 3 Facsimile (14.4 or 9.6 kbps)

Short Message Services (Rate Set 2)

Packet Data Service: Internet or ISO Protocol Stack (14.4 kbps)

Packet Data Service: CDPD Protocol Stack (14.4 kbps)

High Rate Voice Service (13 kbps)

Over-the-Air Parameter Administration (Rate Set 1)

Over-the-Air Parameter Administration (Rate Set 2)

Group 3 Analog Facsimile (Rate Set 1)

Group 3 Analog Facsimile (Rate Set 2)

High Speed Packet Data Service: Internet or ISO Protocol Stack (RS1 forward

High Speed Packet Data Service: Internet or ISO Protocol Stack (RS1 forward

High Speed Packet Data Service: Internet or ISO Protocol Stack (RS2 forward

High Speed Packet Data Service: Internet or ISO Protocol Stack (RS2 forward

High Speed Packet Data Service: CDPD Protocol Stack (RS1 forward

High Speed Packet Data Service: CDPD Protocol Stack (RS1 forward

High Speed Packet Data Service: CDPD Protocol Stack (RS2 forward

High Speed Packet Data Service: CDPD Protocol Stack (RS2 forward

Supplemental Channel Loopback Test for Rate Set 1

Supplemental Channel Loopback Test for Rate Set 2

Test Data Service Option (TDSO)

144 kbps Packet Data Service

144 kbps Packet Data Service

Location Services

Location Services

ISDN Interworking Service (64 kbps)

GSM Voice

GSM Circuit Data

GSM Packet Data

GSM Short Message Service
